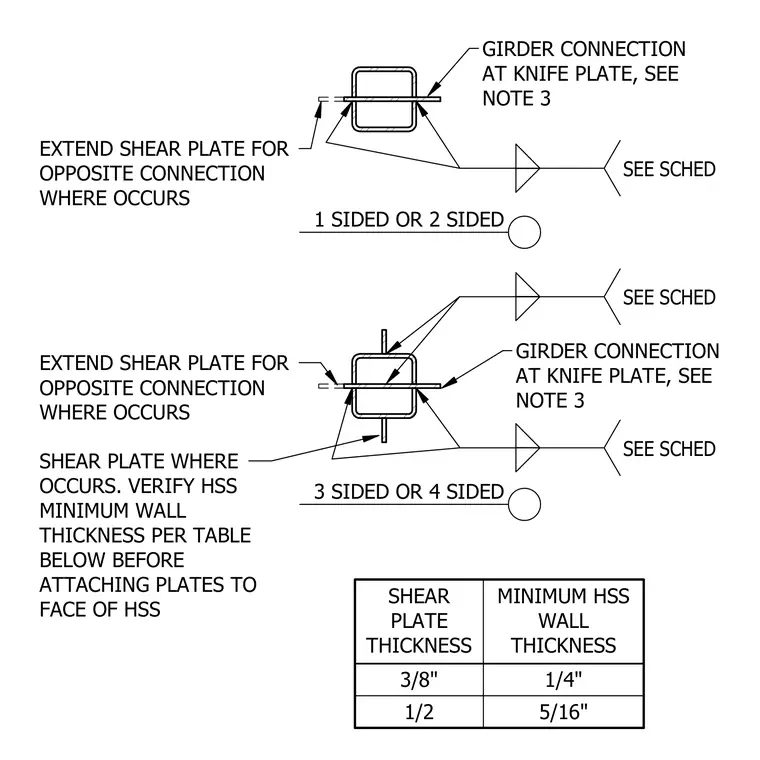

A structural steel detail featuring girder connections at a knife plate and shear plate across a hollow structural section column. The configuration accommodates one-sided or two-sided connections as well as three-sided or four-sided arrangements. Shear plates are extended for opposite connections where required. A companion table dictates the minimum hollow structural section wall thickness relative to the specified shear plate thickness, requiring verification prior to plate attachment.
SEE SCHED SEE SCHED 1 SIDED OR 2 SIDED 3 SIDED OR 4 SIDED SEE SCHED GIRDER CONNECTION AT KNIFE PLATE, SEE NOTE 3 EXTEND SHEAR PLATE FOR OPPOSITE CONNECTION WHERE OCCURS SHEAR PLATE WHERE OCCURS. VERIFY HSS MINIMUM WALL THICKNESS PER TABLE BELOW BEFORE ATTACHING PLATES TO FACE OF HSS EXTEND SHEAR PLATE FOR OPPOSITE CONNECTION WHERE OCCURS GIRDER CONNECTION AT KNIFE PLATE, SEE NOTE 3 SHEAR PLATE THICKNESS MINIMUM HSS WALL THICKNESS 1/4" 1/2 3/8" 5/16"
