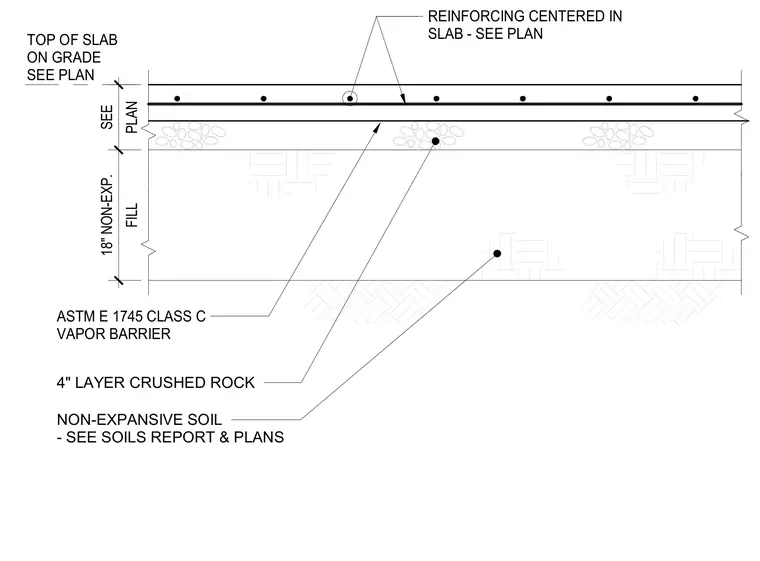

A concrete slab on grade assembly is supported by a prepared subgrade of non-expansive soil fill. An 18-inch layer of non-expansive fill sits below a 4-inch layer of crushed rock, which provides a stable capillary break. An ASTM E 1745 Class C vapor barrier is installed directly over the crushed rock to prevent moisture migration into the slab. Reinforcing steel is centered within the concrete slab per structural plans.
TOP OF SLAB ON GRADE SEE PLAN NON-EXPANSIVE SOIL - SEE SOILS REPORT & PLANS ASTM E 1745 CLASS C VAPOR BARRIER 4" LAYER CRUSHED ROCK REINFORCING CENTERED IN SLAB - SEE PLAN FILL 18" NON-EXP. PLAN SEE .
