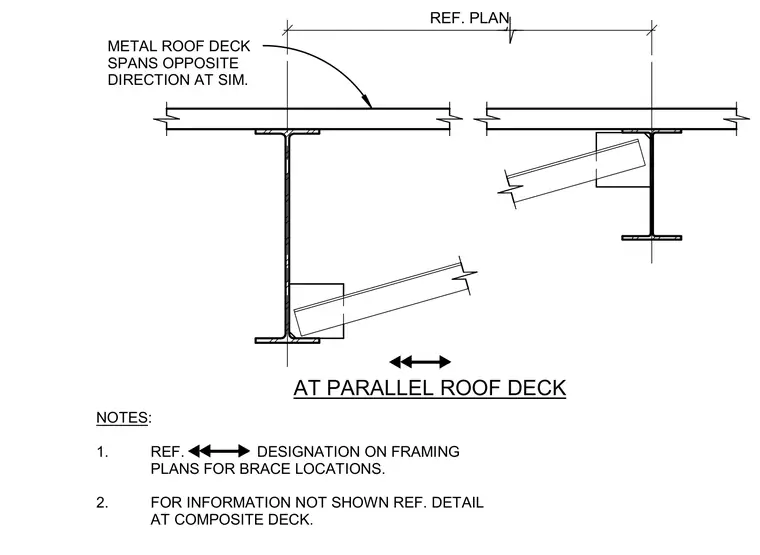

Roof bracing connects to wide flange steel beams supporting metal roof deck spanning opposite directions at similar conditions. Brace locations are referenced by designations on framing plans. Additional information refers to the composite deck detail and parallel roof deck plan.
METAL ROOF DECK SPANS OPPOSITE DIRECTION AT SIM. NOTES: 1. REF. DESIGNATION ON FRAMING PLANS FOR BRACE LOCATIONS. 2. FOR INFORMATION NOT SHOWN REF. DETAIL AT COMPOSITE DECK. REF. PLAN AT PARALLEL ROOF DECK
