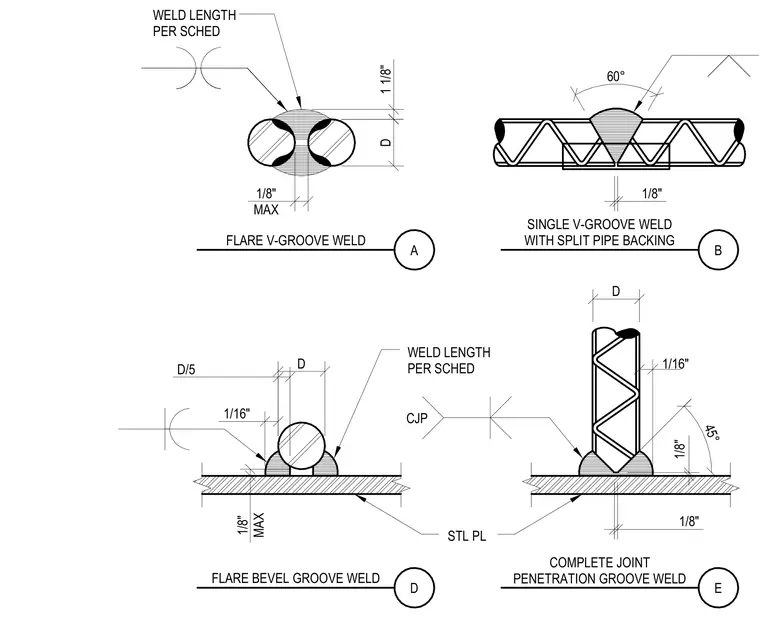

Standard reinforcing bar welded connection types comprise flare v-groove, flare bevel-groove, single v-groove with split pipe backing, and complete joint penetration groove welds. Detail A has a flare v-groove weld with a weld length per schedule and a maximum root opening of one-eighth inch. Detail B has a single v-groove weld with a split pipe backing, sixty-degree bevel angle, and one-eighth inch root opening. Detail D has a flare bevel groove weld connecting a reinforcing bar to a steel plate with specific dimensional clearances. Detail E has a complete joint penetration groove weld with forty-five-degree bevel and one-eighth inch root opening on a steel plate.
45° 1/16" D D D/5 1/16" D 60° 1/8" MAX 1/8" MAX 1/8" 1/8" 1 1/8" 1/8" SINGLE V-GROOVE WELD WITH SPLIT PIPE BACKING E COMPLETE JOINT PENETRATION GROOVE WELD B A FLARE V-GROOVE WELD D FLARE BEVEL GROOVE WELD WELD LENGTH PER SCHED WELD LENGTH PER SCHED STL PL CJP
