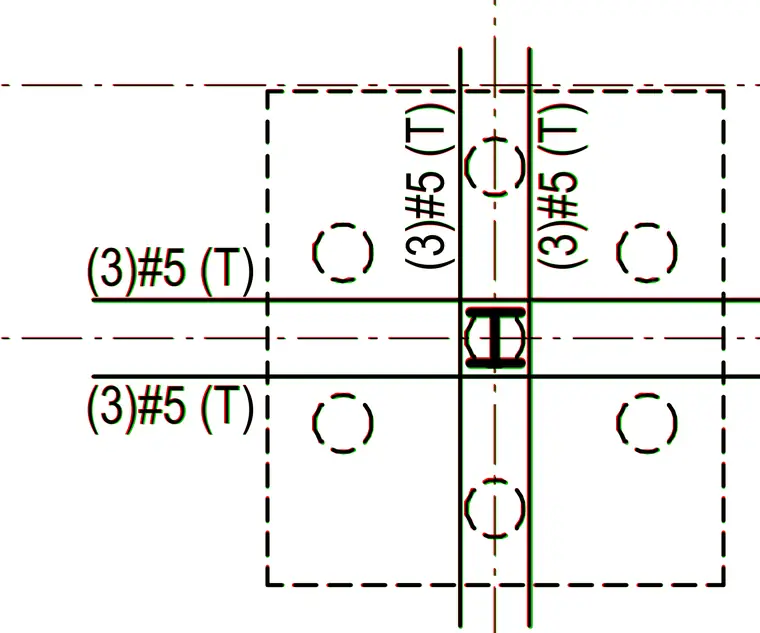

A structural steel column base is detailed with three number 5 reinforcing bars placed at the top layer in orthogonal directions. Four anchor rods are positioned around the perimeter of the base plate. Centerlines align with the structural grid.
