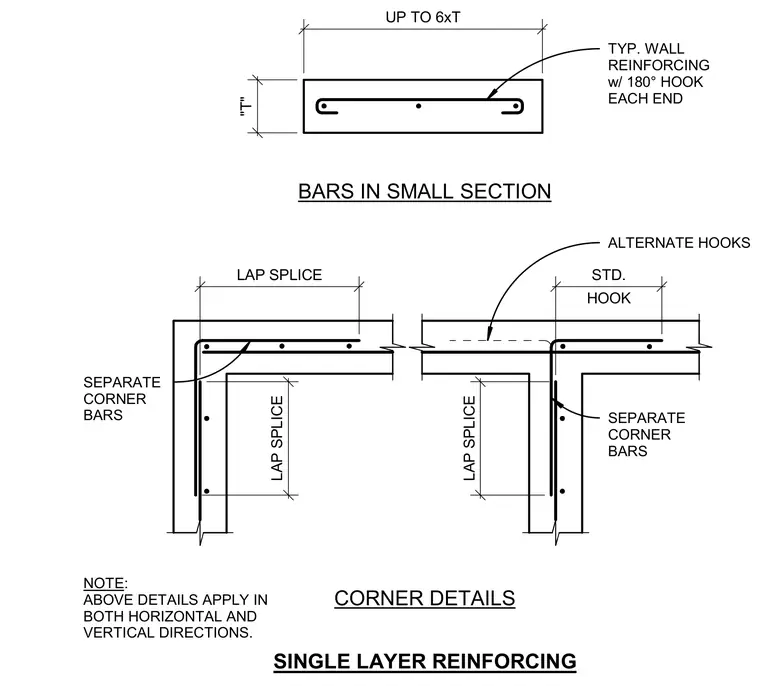

Reinforcing bars in small concrete sections and wall corners feature standard laps and hooks for structural continuity. Typical wall reinforcing utilizes 180-degree hooks at each end within small sections up to six times thickness. Corner details incorporate separate corner bars with lap splices in both horizontal and vertical directions, utilizing alternate hooks for single-layer reinforcing.
ALTERNATE HOOKS TYP. WALL REINFORCING w/ 180° HOOK EACH END BARS IN SMALL SECTION CORNER DETAILS UP TO 6xT HOOK STD. LAP SPLICE SEPARATE CORNER BARS NOTE: ABOVE DETAILS APPLY IN BOTH HORIZONTAL AND VERTICAL DIRECTIONS. SEPARATE CORNER BARS SINGLE LAYER REINFORCING "T" LAP SPLICE LAP SPLICE
