A concrete tie beam frames into a continuous pad footing. The tie beam is reinforced with four number six longitudinal bars at the top and bottom enclosed by number three ties, with a typical lap splice length of five feet zero inches unless noted otherwise. Reinforcement bars maintain a three-inch clear cover typical throughout. The pad footing size and reinforcement are per the foundation schedule, with bottom bars terminated three inches clear of the pad end where a tie beam occurs on one side only.

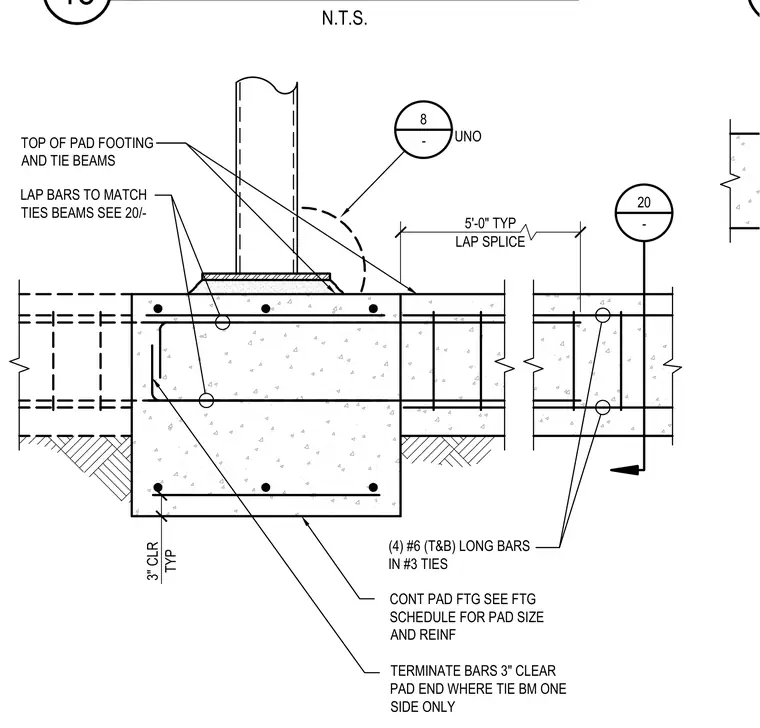

TERMINATE BARS 3" CLEAR PAD END WHERE TIE BM ONE SIDE ONLY CONT PAD FTG SEE FTG SCHEDULE FOR PAD SIZE AND REINF 3" CLR TYP LAP BARS TO MATCH TIES BEAMS SEE 20/- (4) #6 (T&B) LONG BARS IN #3 TIES 20 - 8 - UNO 5'-0" TYP LAP SPLICE TOP OF PAD FOOTING AND TIE BEAMS 18 N.T.S.
