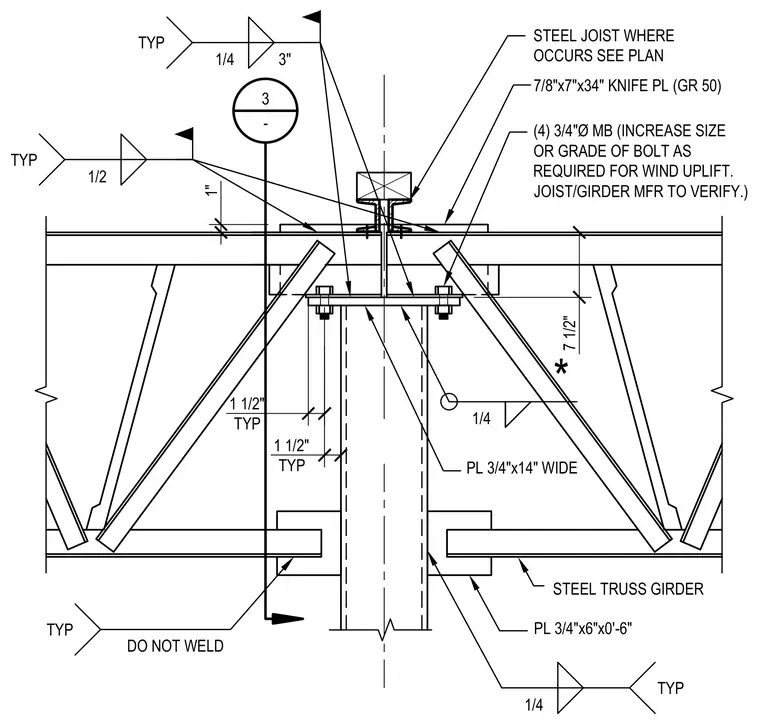

A steel truss girder bears on a column with a 3/4-inch by 14-inch plate and a 7/8-inch by 7-inch by 34-inch Grade 50 knife plate. The connection is secured with four 3/4-inch diameter machine bolts, with bolt size or grade subject to increase for wind uplift as verified by the joist or girder manufacturer. Additional 3/4-inch by 6-inch by 0'-6" plates are welded with typical 1/4-inch fillet welds, leaving specific areas left unwelded to the girder as noted. A steel joist connects at the top where indicated on the plan.
PL 3/4"x6"x0'-6" DO NOT WELD PL 3/4"x14" WIDE 7/8"x7"x34" KNIFE PL (GR 50) STEEL JOIST WHERE OCCURS SEE PLAN 1 1/2" TYP 1" 7 1/2" 3 - 1/4 1/4 TYP TYP 1/2 TYP STEEL TRUSS GIRDER * (4) 3/4"Ø MB (INCREASE SIZE OR GRADE OF BOLT AS REQUIRED FOR WIND UPLIFT. JOIST/GIRDER MFR TO VERIFY.) 1/4 3" TYP 1 1/2" TYP
