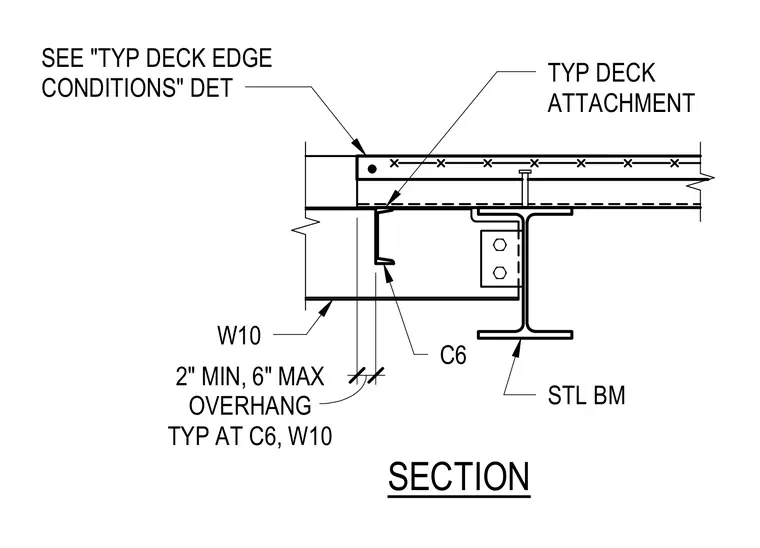

A metal deck bears over a W10 steel beam and a C6 channel edge member with typical deck attachment. The channel maintains a two-inch minimum to six-inch maximum overhang typical at the C6 and W10 assembly. Edge conditions reference the typical deck edge conditions detail.
W10 C6 SEE "TYP DECK EDGE CONDITIONS" DET 2" SECTION TYP DECK ATTACHMENT 2" MIN, 6" MAX OVERHANG TYP AT C6, W10 STL BM
