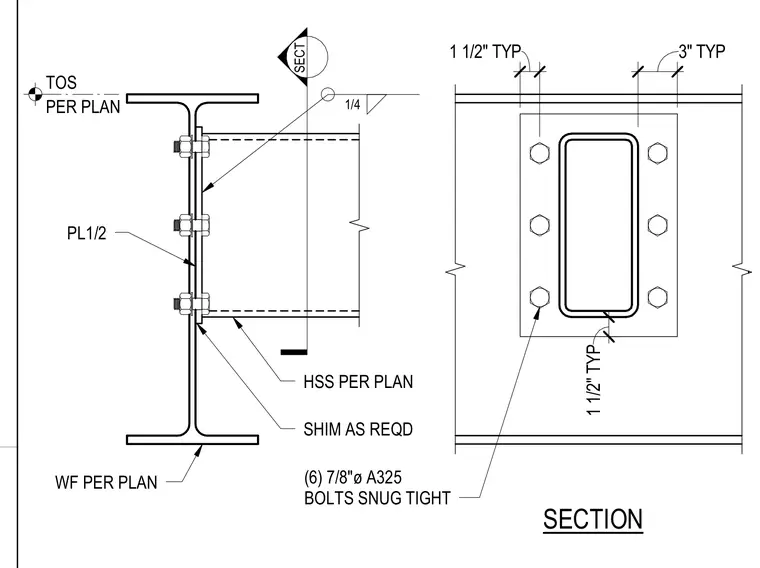

A hollow structural section beam connects to the web of a wide flange beam using a welded end plate and six seven-eighths inch diameter A325 bolts installed snug tight. A one-half inch thick plate is welded to the end of the hollow structural section with a quarter-inch fillet weld. Shims are placed as required between the connection plate and the wide flange beam web. Edge distances are set at one and one-half inches and three inches typical.
SECT PER PLAN TOS HSS PER PLAN PL1/2 SHIM AS REQD WF PER PLAN 1/4 SECTION 1 1/2" TYP 3" TYP 1 1/2" TYP (6) 7/8"ø A325 BOLTS SNUG TIGHT
