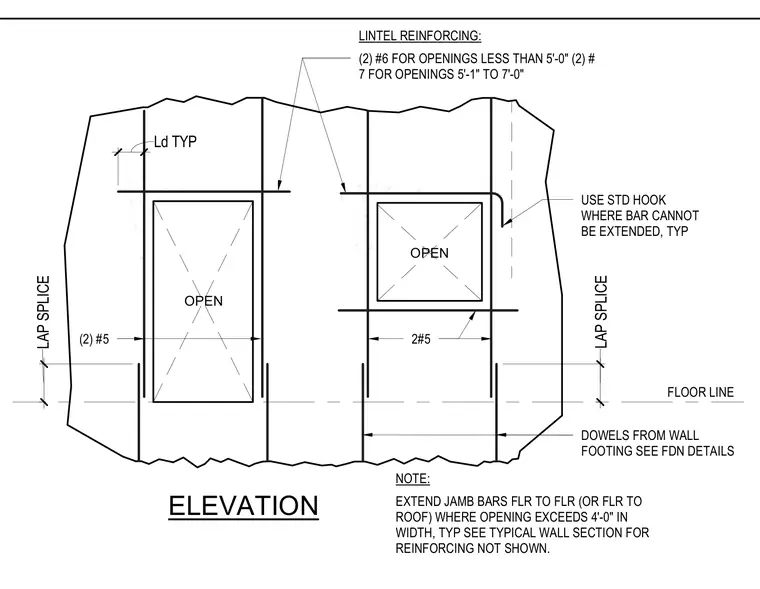

Concrete wall openings are reinforced with two number five bars below the opening and lintel reinforcing above sized by the span. Openings up to five feet wide require two number six bars, while openings from five feet one inch to seven feet require two number seven bars. Standard hooks are used where bars cannot be fully extended. Jamb bars extend from floor to floor or floor to roof when the opening exceeds four feet in width. Lap splices and dowels from the wall footing are provided as detailed.
ELEVATION NOTE: OPEN 2#5 OPEN FLOOR LINE LINTEL REINFORCING: (2) #6 FOR OPENINGS LESS THAN 5'-0" (2) # 7 FOR OPENINGS 5'-1" TO 7'-0" USE STD HOOK WHERE BAR CANNOT BE EXTENDED, TYP DOWELS FROM WALL FOOTING SEE FDN DETAILS EXTEND JAMB BARS FLR TO FLR (OR FLR TO ROOF) WHERE OPENING EXCEEDS 4'-0" IN WIDTH, TYP SEE TYPICAL WALL SECTION FOR REINFORCING NOT SHOWN. Ld TYP LAP SPLICE LAP SPLICE (2) #5
