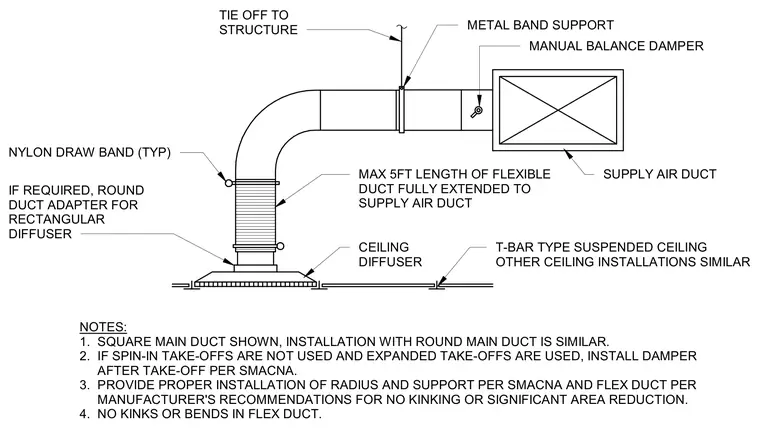

A supply air duct connects to a ceiling diffuser through a maximum five-foot length of fully extended flexible duct secured with nylon draw bands. A round duct adapter is used if required for a rectangular diffuser set into a T-bar type suspended ceiling. The main duct is supported by a metal band suspended by a tie-off to the structure, and a manual balance damper is installed in the run. Installation requirements follow SMACNA standards to prevent kinking or area reduction in the flex duct.
NOTES: 1. SQUARE MAIN DUCT SHOWN, INSTALLATION WITH ROUND MAIN DUCT IS SIMILAR. 2. IF SPIN-IN TAKE-OFFS ARE NOT USED AND EXPANDED TAKE-OFFS ARE USED, INSTALL DAMPER AFTER TAKE-OFF PER SMACNA. 3. PROVIDE PROPER INSTALLATION OF RADIUS AND SUPPORT PER SMACNA AND FLEX DUCT PER MANUFACTURER'S RECOMMENDATIONS FOR NO KINKING OR SIGNIFICANT AREA REDUCTION. 4. NO KINKS OR BENDS IN FLEX DUCT. IF REQUIRED, ROUND DUCT ADAPTER FOR RECTANGULAR DIFFUSER TIE OFF TO STRUCTURE NYLON DRAW BAND (TYP) METAL BAND SUPPORT SUPPLY AIR DUCT MAX 5FT LENGTH OF FLEXIBLE DUCT FULLY EXTENDED TO SUPPLY AIR DUCT CEILING DIFFUSER T-BAR TYPE SUSPENDED CEILING OTHER CEILING INSTALLATIONS SIMILAR MANUAL BALANCE DAMPER
