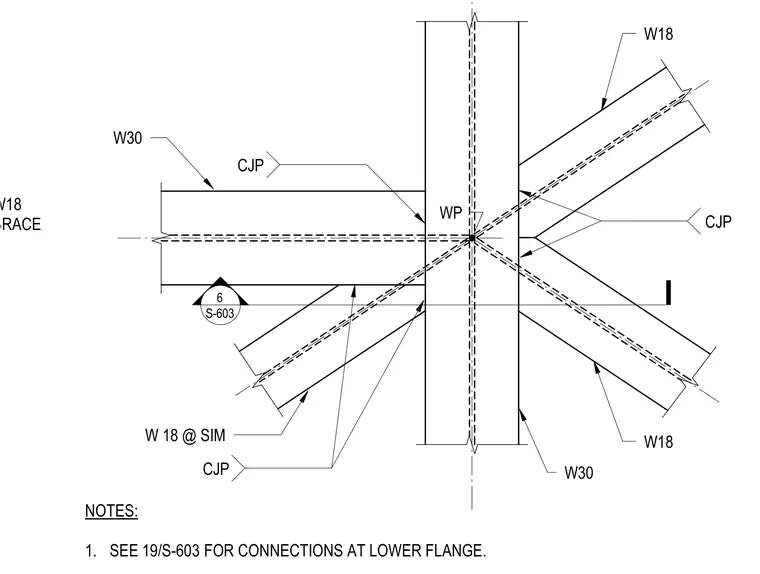

A W18 diagonal brace connects to the intersection of a vertical W30 column and a horizontal W30 beam at a common work point. The connection utilizes complete joint penetration groove welds for the members. Additional W18 members frame symmetrically into the assembly. A general note directs attention to another sheet for connections at the lower flange.
W18 BRACE W30 W18 WP CJP 6 S-603 CJP W18 NOTES: 1. SEE FOR CONNECTIONS AT LOWER FLANGE. 19/S-603 W30 W 18 @ SIM CJP
