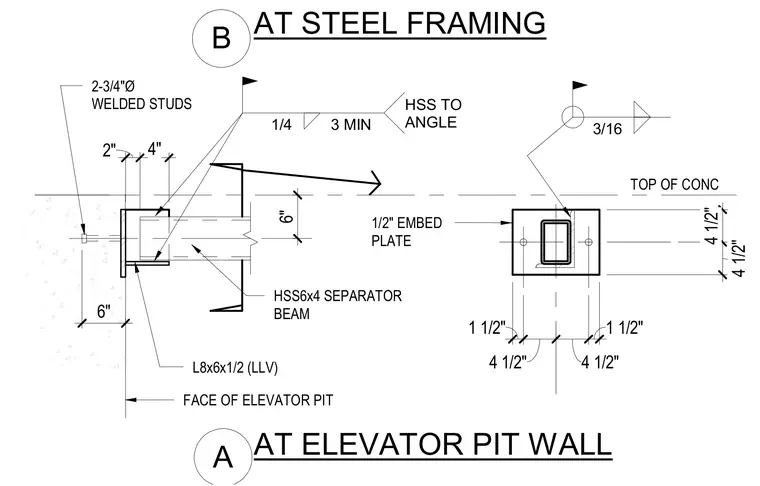

An HSS6x4 separator beam connects to an elevator pit wall using an L8x6x1/2 angle welded to a one-half-inch embed plate with two three-quarter-inch diameter welded studs anchored into the concrete. The connection utilizes a quarter-inch fillet weld with a three-inch minimum length for the hollow structural section to the angle. At the steel framing condition, a three-sixteenth-inch fillet weld secures the assembly with precise dimensional clearances of four-and-a-half inches and two inches.
TOP OF CONC FACE OF ELEVATOR PIT HSS6x4 SEPARATOR BEAM L8x6x1/2 (LLV) 1/2" EMBED PLATE 2-3/4"Ø WELDED STUDS AT ELEVATOR PIT WALL A AT STEEL FRAMING B 2" 4" 6" 6" 1 1/2" 4 1/2" 4 1/2" 1 1/2" 4 1/2" 4 1/2" 3/16 1/4 3 MIN HSS TO ANGLE
