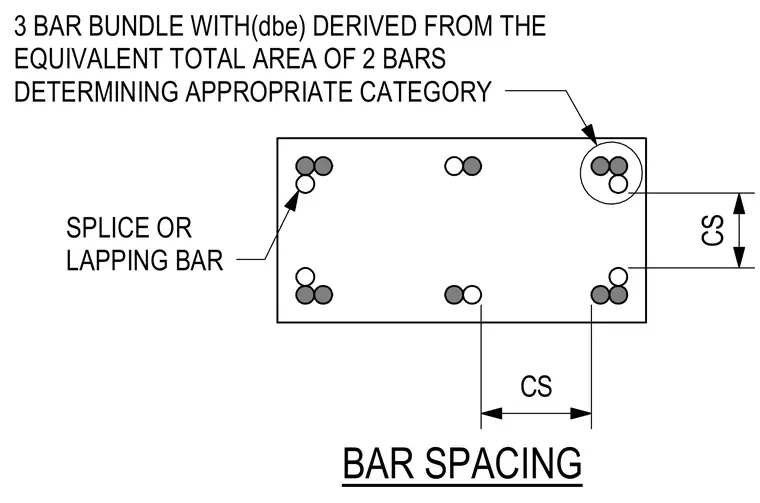

Reinforcing bar spacing and splice or lapping configurations detail three-bar bundles with equivalent total area derived from two bars. Clear spacing dimensions designated as CS apply between bars and bar bundles within the section.
SPLICE OR LAPPING BAR 3 BAR BUNDLE WITH(dbe) DERIVED FROM THE EQUIVALENT TOTAL AREA OF 2 BARS DETERMINING APPROPRIATE CATEGORY BAR SPACING CS CS
