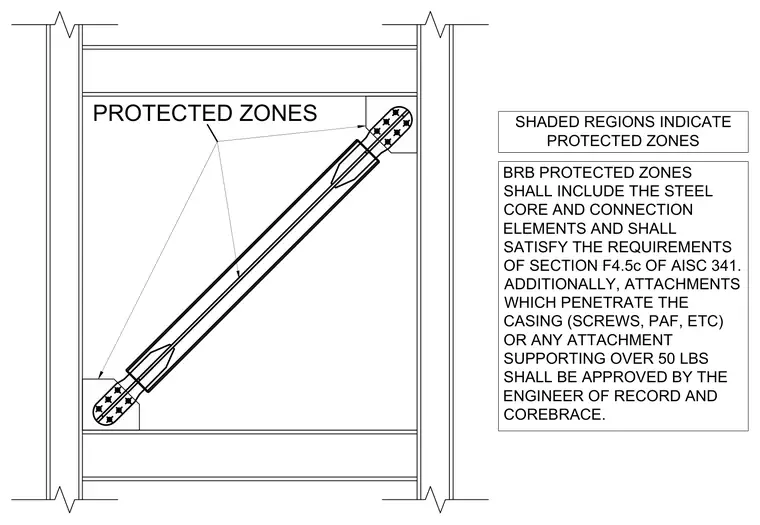

Shaded regions indicate protected zones on buckling-restrained braces, including the steel core and connection elements per Section F4.5c of AISC 341. Attachments penetrating the casing such as screws or powder-actuated fasteners, and any attachment supporting over 50 pounds, require approval from the engineer of record and CoreBrace.
PROTECTED ZONES SHADED REGIONS INDICATE PROTECTED ZONES BRB PROTECTED ZONES SHALL INCLUDE THE STEEL CORE AND CONNECTION ELEMENTS AND SHALL SATISFY THE REQUIREMENTS OF SECTION F4.5c OF AISC 341. ADDITIONALLY, ATTACHMENTS WHICH PENETRATE THE CASING (SCREWS, PAF, ETC) OR ANY ATTACHMENT SUPPORTING OVER 50 LBS SHALL BE APPROVED BY THE ENGINEER OF RECORD AND COREBRACE.
