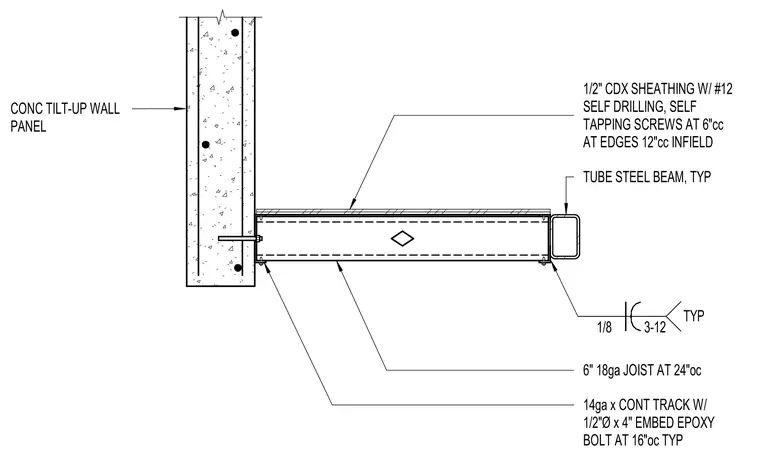

This assembly features a six-inch, 18-gauge cold-formed steel joist spaced at 24 inches on center, anchored to a concrete tilt-up wall panel via a 14-gauge continuous track. The track is secured to the concrete with 1/2-inch diameter by 4-inch long epoxy-set anchor bolts spaced at 16 inches on center. The joist is capped at the opposite end by a tube steel beam, with a 1/8-inch fillet weld applied at 3 inches on center with 12-inch spacing. The top surface is finished with 1/2-inch CDX plywood sheathing, fastened with number 12 self-drilling, self-tapping screws at 6 inches on center at the edges and 12 inches on center in the field.
