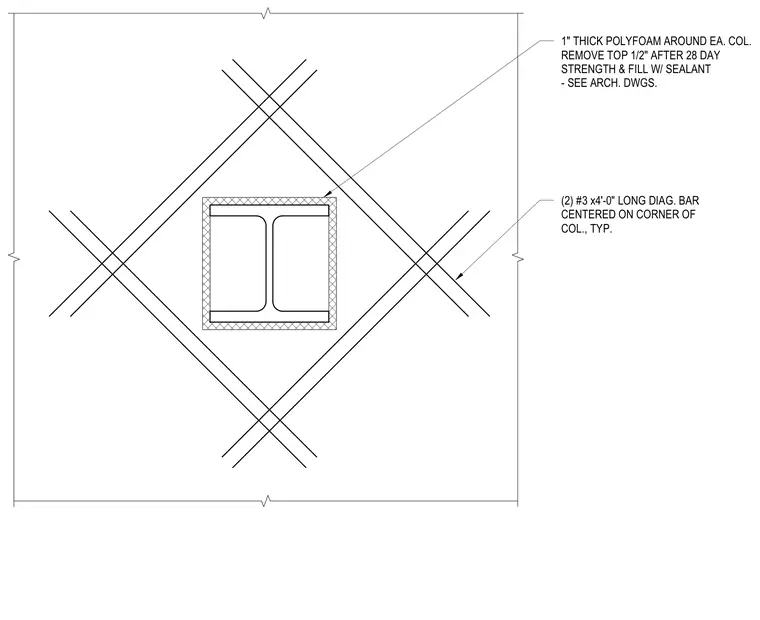

Two number three diagonal reinforcing bars four feet long are centered on each corner of the interior column within the slab on grade. A one-inch thick polyfoam joint material wraps around each column to isolate it from the slab. The top half-inch of the polyfoam is removed after twenty-eight-day concrete strength is reached and filled with sealant per architectural drawings.
(2) #3 x4'-0" LONG DIAG. BAR CENTERED ON CORNER OF COL., TYP. 1" THICK POLYFOAM AROUND EA. COL. REMOVE TOP 1/2" AFTER 28 DAY STRENGTH & FILL W/ SEALANT - SEE ARCH. DWGS.
