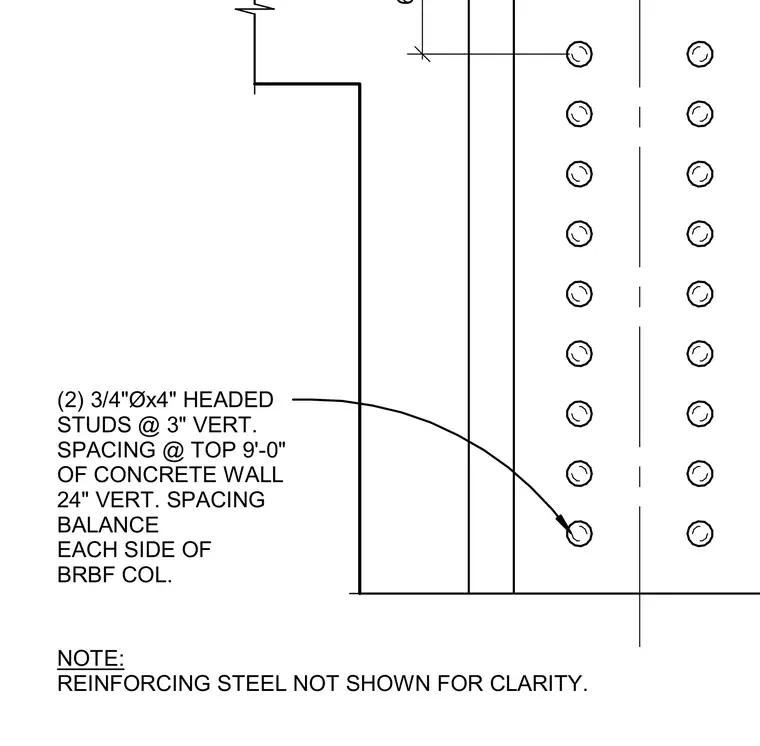

Two three-quarter-inch diameter by four-inch long headed studs are spaced at three inches vertically along the top nine feet of the concrete wall. Below this top zone, the studs transition to twenty-four-inch vertical spacing on each side of the buckling-restrained braced frame column. Reinforcing steel is omitted from the drawing for clarity.
NOTE: REINFORCING STEEL NOT SHOWN FOR CLARITY. (2) 3/4"Øx4" HEADED STUDS @ 3" VERT. SPACING @ TOP 9'-0" OF CONCRETE WALL 24" VERT. SPACING BALANCE EACH SIDE OF BRBF COL. 6"
