An angle brace connects to the top flange of a neighboring joist or beam, transferring loads to a structural steel beam supporting a concrete fill over metal floor deck. A 1/4-inch by 5-inch by 5-inch weld plate connects each brace using 3/16-inch fillet welds to the beam web. Locations and deck direction are sized per plan.

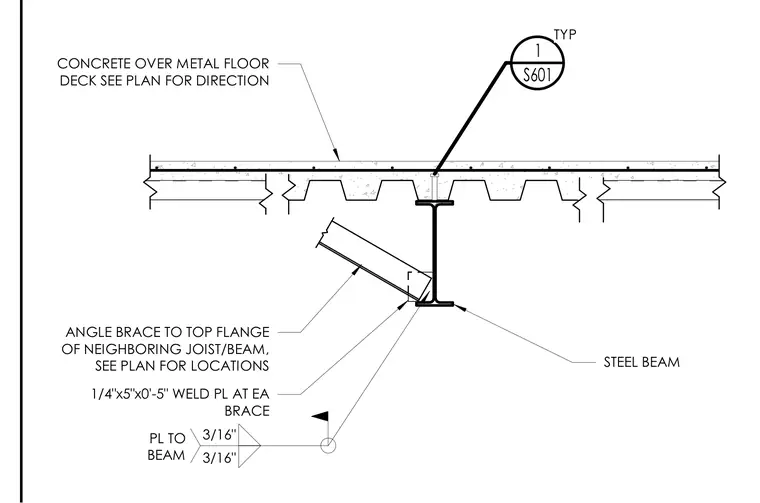

STEEL BEAM 1 S601 ANGLE BRACE TO TOP FLANGE OF NEIGHBORING JOIST/BEAM, SEE PLAN FOR LOCATIONS 1/4"x5"x0'-5" WELD PL AT EA BRACE 3/16" 3/16" PL TO BEAM CONCRETE OVER METAL FLOOR DECK SEE PLAN FOR DIRECTION TYP
