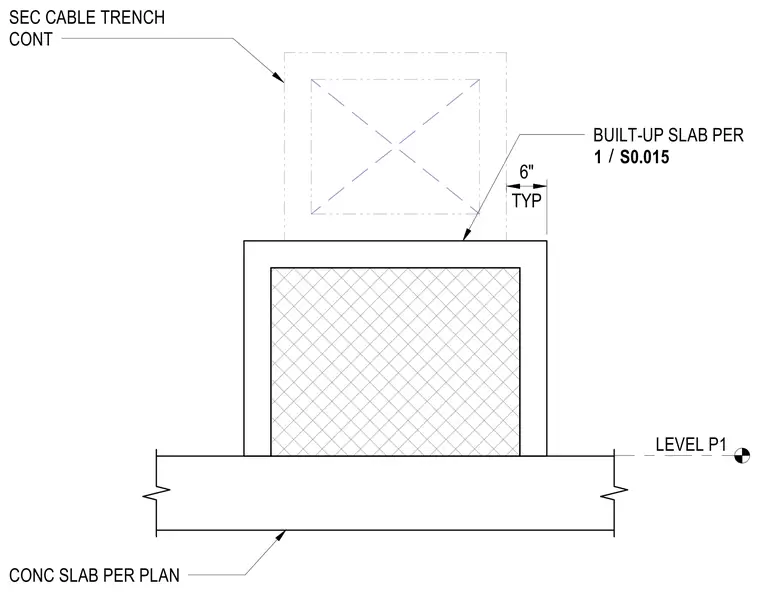

A continuous security cable trench is positioned above a concrete slab at level P1. The assembly features a built-up concrete slab measuring six inches typical, detailed per drawing 1 on sheet S0.15. The concrete slab is constructed per plan specifications.
TYP 6" LEVEL P1 BUILT-UP SLAB PER / 1 S0.015 CONC SLAB PER PLAN SEC CABLE TRENCH CONT
