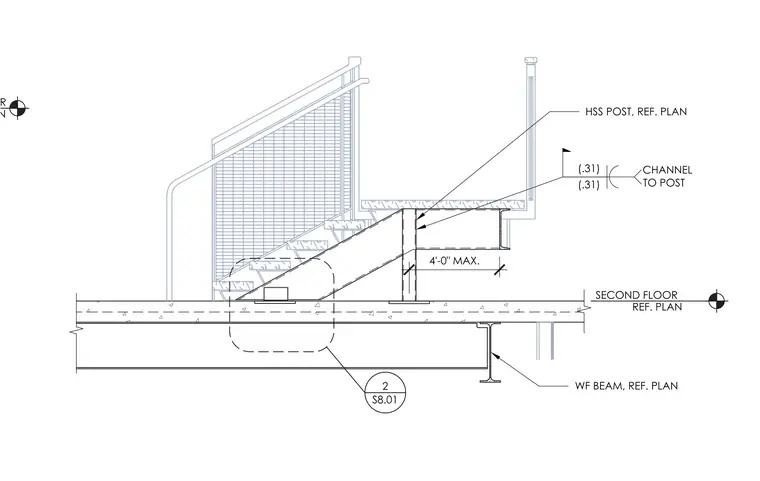

The detail shows a structural steel connection at the second floor landing of an atrium stair. Key components include an HSS post referenced to plans, channel connections to the post, wide flange beams supporting the concrete floor slab, and integrated stair railing and guard systems. The assembly uses welded and bolted structural steel connections to anchor the stair components to the primary floor framing.
Text on the drawing
2 S8.01 SECOND FLOOR REF. PLAN CHANNEL TO POST (.31) (.31) 4'-0" MAX. HSS POST, REF. PLAN WF BEAM, REF. PLAN SECOND FLOOR EL: REF. PLAN
