A concrete column receives an embed plate assembly anchored by welded head studs and tied to post-tensioned tendons located per plan. Eleven galvanized half-inch diameter cable rails rated at 270 ksi attach to the assembly, with a final tension of 3,000 pounds required in each cable. The embedded steel plate measures five-eighths by seven inches by four feet zero inches long and features eight three-quarter-inch diameter by six-inch welded head studs spaced at six inches on center.

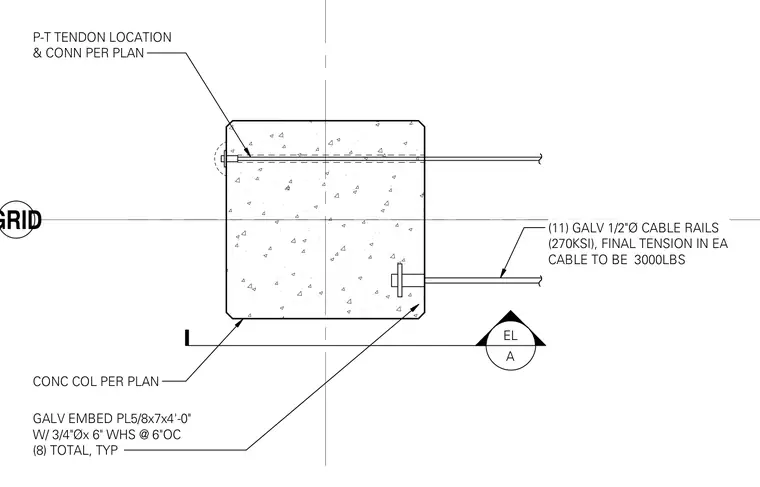

GRID CONC COL PER PLAN (11) GALV 1/2"Ø CABLE RAILS (270KSI), FINAL TENSION IN EA CABLE TO BE 3000LBS GALV EMBED PL5/8x7x4'-0" W/ 3/4"Øx 6" WHS @ 6"OC (8) TOTAL, TYP A EL P-T TENDON LOCATION & CONN PER PLAN
