About this detail

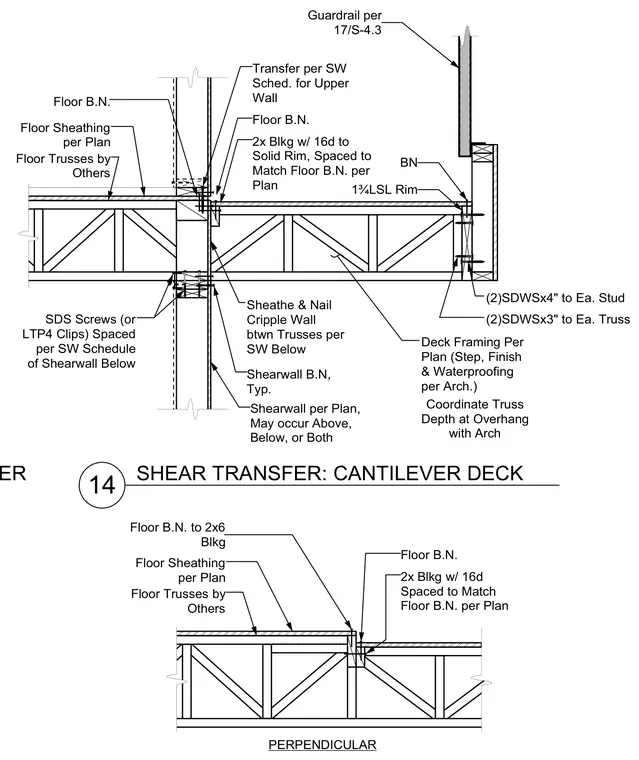

Floor trusses support floor sheathing per plan, tied into a 1-3/4 inch laminated strand lumber rim joist and 2x blocking secured with 16d nails. Two structural wood screws connect framing elements to studs and trusses, while shearwall blocking and boundary nailing transfer lateral loads from upper walls. A guardrail assembly is mounted at the exterior edge, and cripple walls are sheathed and nailed between trusses per the structural schedule.
