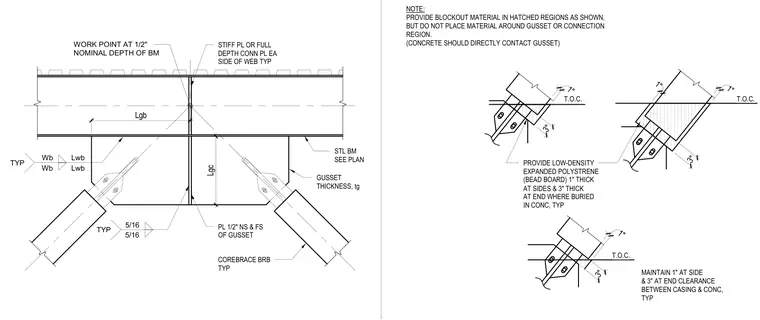

A structural steel chevron brace connects to a steel beam web via a gusset plate welded with five-sixteenths inch fillet welds on the near side and far side. Stiffener plates or full-depth connection plates are provided on each side of the beam web. A corebrace buckling-restrained brace extends from the gusset plate assembly. Low-density expanded polystyrene bead board one inch thick at the sides and three inches thick at the end is provided where buried in concrete. One-inch side and three-inch end clearances are maintained between the casing and concrete, with blockout material placed in hatched regions while leaving the gusset connection region direct contact with concrete.
1" 3" 3" 1" 1" 3" 1" PROVIDE LOW-DENSITY EXPANDED POLYSTRENE (BEAD BOARD) 1" THICK AT SIDES & 3" THICK AT END WHERE BURIED IN CONC, TYP T.O.C. T.O.C. T.O.C. MAINTAIN 1" AT SIDE & 3" AT END CLEARANCE BETWEEN CASING & CONC, TYP NOTE: PROVIDE BLOCKOUT MATERIAL IN HATCHED REGIONS AS SHOWN, BUT DO NOT PLACE MATERIAL AROUND GUSSET OR CONNECTION REGION. (CONCRETE SHOULD DIRECTLY CONTACT GUSSET) Wb Lwb Wb Lwb TYP GUSSET THICKNESS, tg 5/16 5/16 TYP PL 1/2" NS & FS OF GUSSET COREBRACE BRB TYP STL BM SEE PLAN WORK POINT AT 1/2" NOMINAL DEPTH OF BM Lgb Lgc STIFF PL OR FULL DEPTH CONN PL EA SIDE OF WEB TYP
