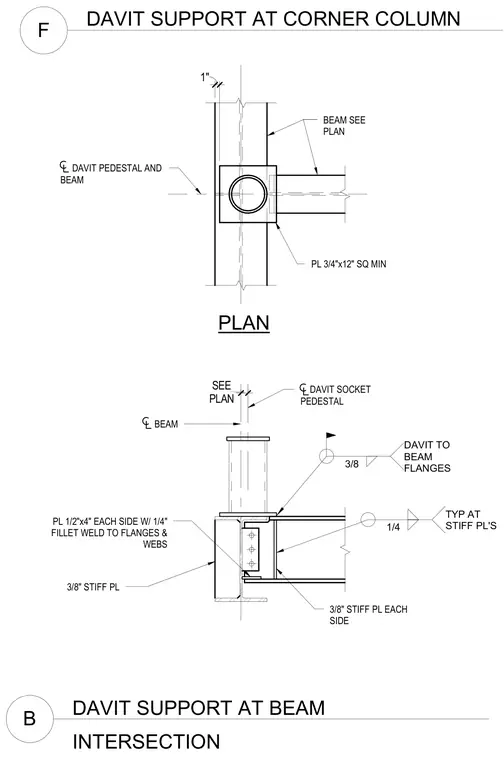

A structural steel davit support assembly is detailed at a corner column and beam intersection. The davit socket pedestal sits on a 3/4 inch square minimum base plate welded to the beam flanges with a 3/8 inch fillet weld. Three-eighths inch stiffener plates are provided on each side of the beam web, welded with 1/4 inch fillet welds to the flanges and webs. Additional 1/2 inch by 4 inch plates are fitted at the column connection with matching fillet welds.
DAVIT SUPPORT AT BEAM B INTERSECTION PLAN 3/8" STIFF PL PL 1/2"x4" EACH SIDE W/ 1/4" FILLET WELD TO FLANGES & WEBS BEAM 3/8" STIFF PL EACH SIDE DAVIT SOCKET PEDESTAL PL 3/4"x12" SQ MIN DAVIT PEDESTAL AND BEAM BEAM SEE PLAN DAVIT SUPPORT AT CORNER COLUMN F PLAN SEE 3/8 DAVIT TO BEAM FLANGES 1/4 TYP AT STIFF PL'S 1"
