Structural · S-N266M

Typical Elevator Hoistway Divider Beam Details

Materials

Concrete Steel Masonry / CMU Metal (misc.)

Elements

Columns Beams Walls Floors / Slabs Decks Anchors / Embeds Connections / Plates

Connections

Base Plate / Anchorage HSS Connection Embed Plate

About this detail

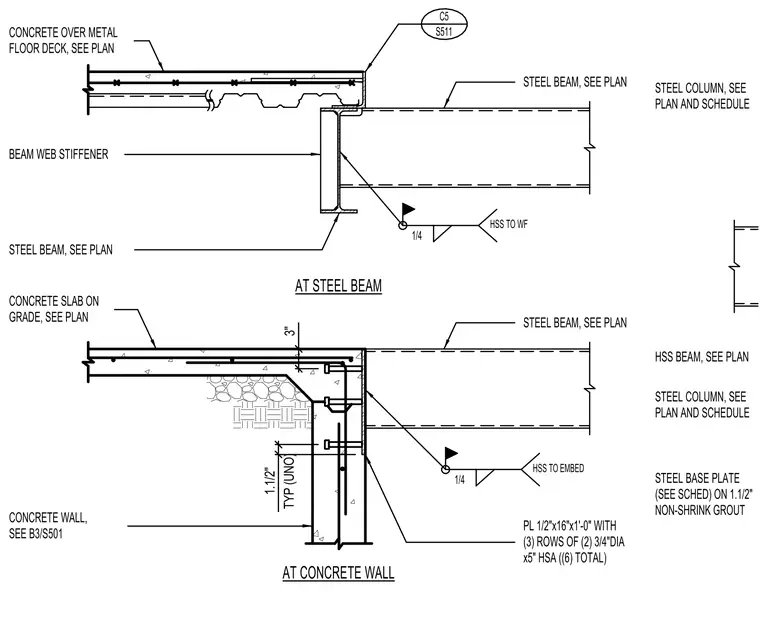

A hollow structural section beam frames into a wide-flange steel beam equipped with a web stiffener welded with a one-quarter-inch fillet weld. Another hollow structural section beam connects to a concrete wall via a half-inch by sixteen-inch by one-foot-zero-inch embed plate secured by three rows of two three-quarter-inch diameter by five-inch headed stud anchors totaling six anchors. Floor conditions feature concrete over metal floor deck at the upper level and a concrete slab on grade at the lower level bearing against the structural framing.
