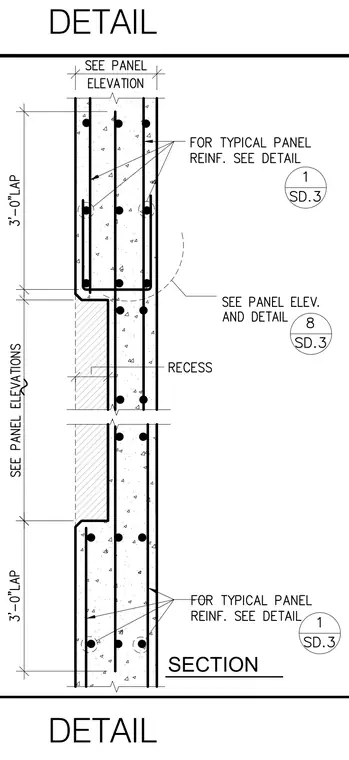

A vertical section through a precast concrete wall panel displays standard reinforcement detailing with a three-foot-zero-inch lap splice. The panel incorporates a recess detail along its height, with specific reinforcing bars configured per typical panel details referenced on sheet SD.3. Dimensions indicate panel heights are coordinated per the panel elevations.
