Structural · S-MZXH9

Typical Column Base Plate Type 6

Materials

Steel

Elements

Columns Connections / Plates

Connections

Base Plate / Anchorage HSS Connection Bolted Connection

About this detail

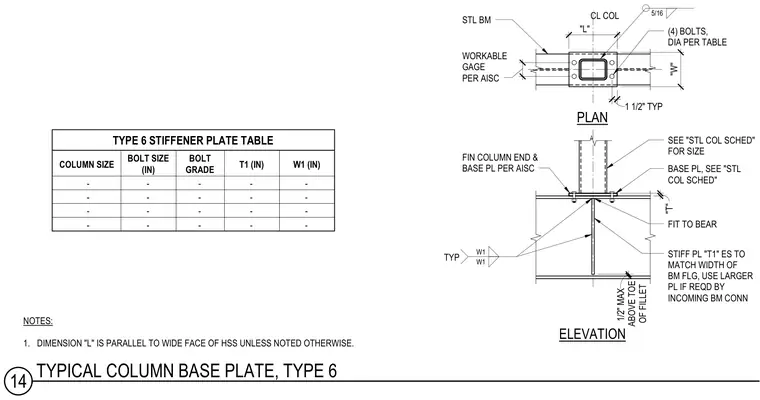

A hollow structural section column bears on a base plate atop a supporting steel beam, secured by four anchor bolts sized per the structural column schedule. A stiffener plate matches the width of the beam flange and is fitted to bear, with a maximum one-half-inch clearance above the toe of the fillet. Fillet welds connect the stiffener plate as specified, and dimensions for length and workable gage follow standard AISC guidelines. A accompanying table specifies bolt sizes, grades, and stiffener plate dimensions for various column sizes.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
