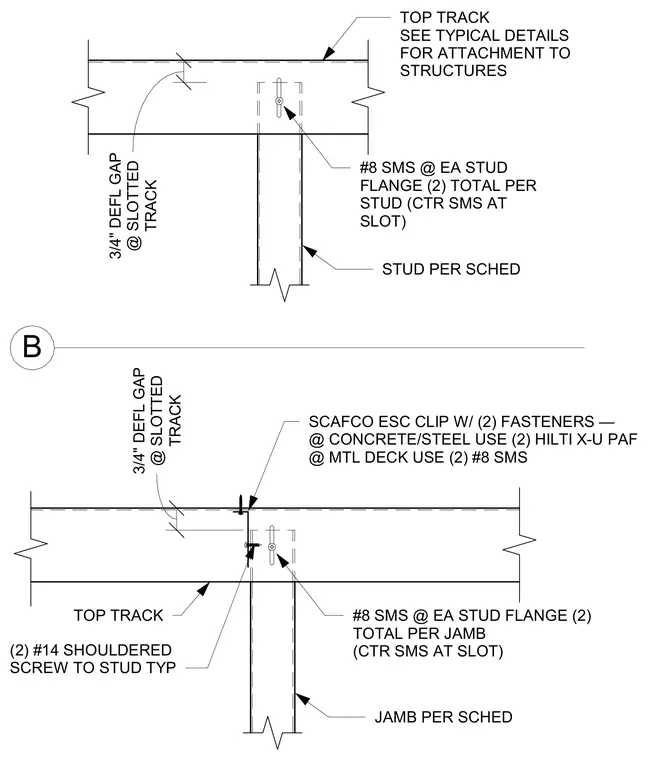

The cold-formed steel stud connects to the top track with a three-quarter-inch deflection gap at the slotted track. Each stud flange is secured with two number eight sheet metal screws centered in the slots. For jamb conditions, a Scafco ESC clip with two fasteners attaches the jamb to the structure above, utilizing two Hilti X-U power-actuated fasteners at concrete or steel, or two number eight sheet metal screws at metal deck. Two number fourteen shouldered screws provide typical attachment to the stud at the clip.
JAMB PER SCHED TOP TRACK TRACK 3/4" DEFL GAP @ SLOTTED #8 SMS @ EA STUD FLANGE (2) TOTAL PER JAMB (CTR SMS AT SLOT) SCAFCO ESC CLIP W/ (2) FASTENERS — @ CONCRETE/STEEL USE (2) HILTI X-U PAF @ MTL DECK USE (2) #8 SMS (2) #14 SHOULDERED SCREW TO STUD TYP B STUD PER SCHED TOP TRACK SEE TYPICAL DETAILS FOR ATTACHMENT TO STRUCTURES TRACK 3/4" DEFL GAP @ SLOTTED #8 SMS @ EA STUD FLANGE (2) TOTAL PER STUD (CTR SMS AT SLOT)
