Structural · S-MZTGT

Folding Door Support Detail

Materials

Concrete Steel Cold-formed Steel Timber / Wood Metal (misc.)

Elements

Beams Walls Doors Floors / Slabs Decks Arches Bracing Insulation Connections / Plates

Connections

HSS Connection Bracing Connection Welded Connection Deck Attachment

About this detail

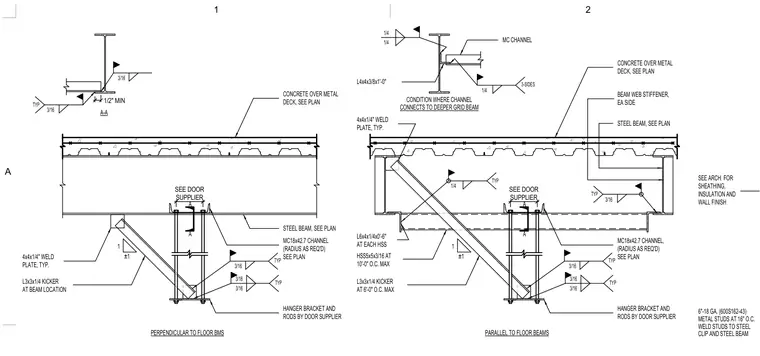

An MC18x42.7 channel suspends the folding door hardware below structural steel floor beams, utilizing hanger brackets and rods provided by the door supplier. L3x3x1/4 kickers and 4x4x1/4 weld plates brace the channel assembly against the supporting steel beams and concrete-filled metal deck. In parallel framing conditions, HSS5x5x3/16 members spaced at ten feet on center integrate with L6x4x1/4 web stiffeners welded to each side of the beam web. Additional connection conditions handle channels framing into deeper grid beams using L4x4x3/8 angles and three-sided fillet welds. Cold-formed steel metal studs measuring six inches at eighteen gauge are welded to steel clips and the main structural steel beam to complete the adjacent wall framing.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
