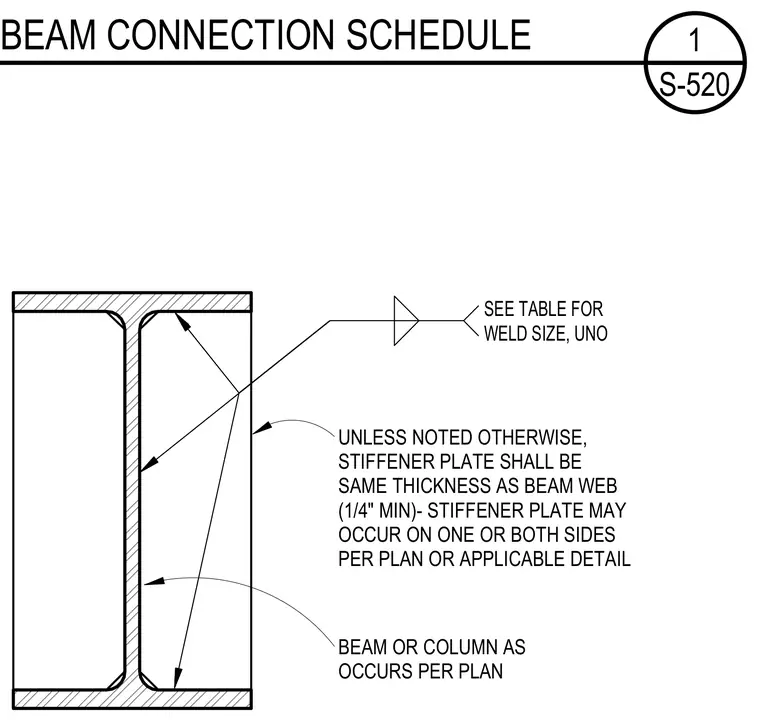

Steel stiffener plates are welded to the web of a structural beam or column profile. Unless noted otherwise, the stiffener plate thickness matches the beam web with a one-quarter-inch minimum. Stiffener plates may occur on one or both sides as required per plan or applicable detail. Weld sizes are specified per the structural connection table.
UNLESS NOTED OTHERWISE, STIFFENER PLATE SHALL BE SAME THICKNESS AS BEAM WEB (1/4" MIN)- STIFFENER PLATE MAY OCCUR ON ONE OR BOTH SIDES PER PLAN OR APPLICABLE DETAIL BEAM OR COLUMN AS OCCURS PER PLAN SEE TABLE FOR WELD SIZE, UNO S-520 TYPICAL BEAM CONNECTION SCHEDULE 1
