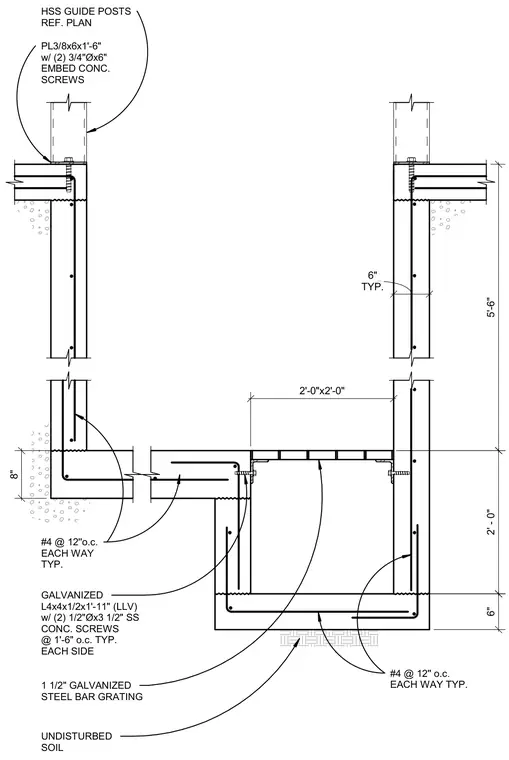

A reinforced concrete pit or trench features a 1-1/2-inch galvanized steel bar grating spanning 2 feet. The grating bears on galvanized 4x4x1/2-inch structural steel angles measuring 1 foot 11 inches long, secured to the concrete walls with two 1/2-inch diameter by 3-1/2-inch stainless steel concrete screws spaced at 1 foot 6 inches on center on each side. The concrete walls and base slab are reinforced with No. 4 reinforcing bars at 12 inches on center each way typically, resting on undisturbed soil. Hollow structural section guide posts are anchored to the top of the concrete walls using a 3/8-inch by 6-inch by 1-foot-6-inch base plate fastened with two 3/4-inch diameter by 6-inch embedded concrete screws.
#4 @ 12'' o.c. EACH WAY TYP. #4 @ 12''o.c. EACH WAY TYP. UNDISTURBED SOIL GALVANIZED L4x4x1/2x1'-11" (LLV) w/ (2) 1/2"Øx3 1/2" SS CONC. SCREWS @ 1'-6" o.c. TYP. EACH SIDE 1 1/2" GALVANIZED STEEL BAR GRATING 2'-0"x2'-0" TYP. 6" 6" 2' - 0" 5'-6" 8" HSS GUIDE POSTS REF. PLAN PL3/8x6x1'-6" w/ (2) 3/4"Øx6" EMBED CONC. SCREWS
