A structural steel beam supports a metal roof deck with all deck flutes filled with expanded polystyrene at the penthouse. A lightweight concrete slab on geofoam bears over the deck, tied with number four A706 reinforcing bars spaced at twelve inches on center welded to the top of the beam. A pour stop retains the concrete slab adjacent to a cold-formed steel box header by the manufacturer. Exterior cold-formed steel studs measuring six inches are spaced at sixteen inches on center and carry exterior metal panels per architectural drawings, backed by a six-inch lightweight concrete wall reinforced with number four horizontal bars at twelve inches on center.

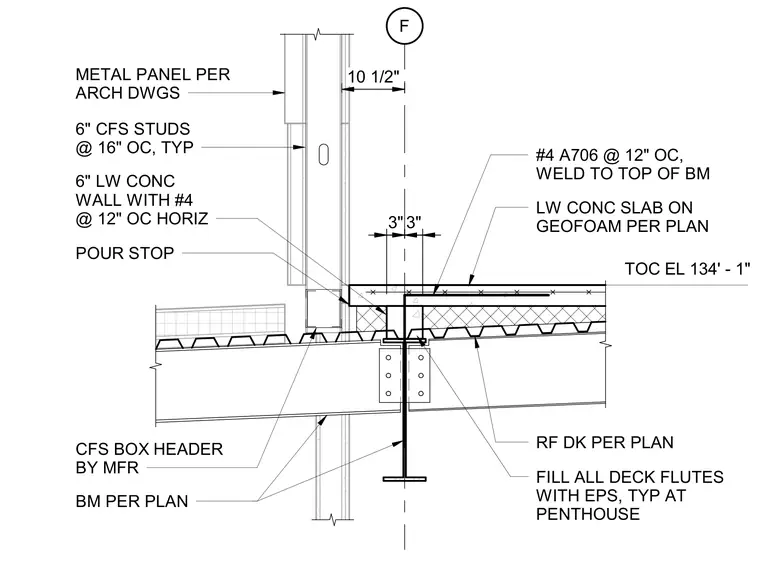

F 6" CFS STUDS @ 16" OC, TYP METAL PANEL PER ARCH DWGS 6" LW CONC WALL WITH #4 @ 12" OC HORIZ POUR STOP CFS BOX HEADER BY MFR BM PER PLAN 10 1/2" RF DK PER PLAN LW CONC SLAB ON GEOFOAM PER PLAN FILL ALL DECK FLUTES WITH EPS, TYP AT PENTHOUSE #4 A706 @ 12" OC, WELD TO TOP OF BM 3" 3" TOC EL 134' - 1"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
