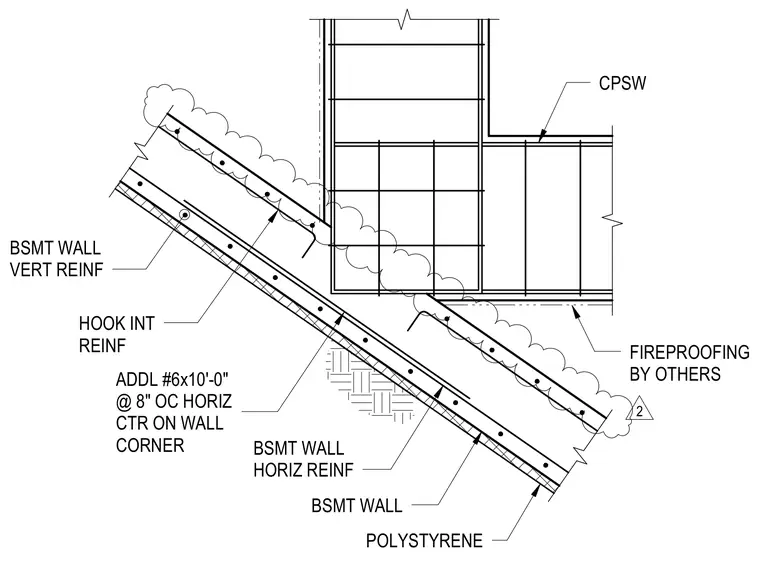

This concrete basement wall corner junction is reinforced with vertical and horizontal reinforcing bars along with hooked internal reinforcement. Additional number six horizontal reinforcing bars at ten feet zero inches length are spaced at eight inches on center centered on the wall corner. Polystyrene insulation lines the exterior face of the basement wall, and fireproofing by others is applied at the interior intersection. A CPSW member connects at the corner.
BSMT WALL FIREPROOFING BY OTHERS BSMT WALL VERT REINF BSMT WALL HORIZ REINF ADDL #6x10'-0" @ 8" OC HORIZ CTR ON WALL CORNER HOOK INT REINF CPSW POLYSTYRENE 2
