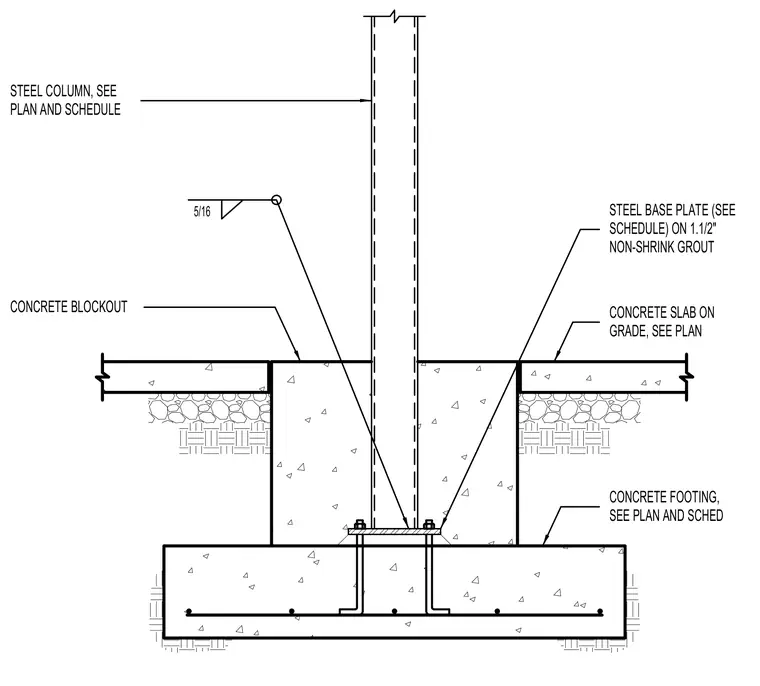

A structural steel column bears on a steel base plate positioned over one and a half inches of non-shrink grout. The base plate rests on a reinforced concrete footing, surrounded by a concrete blockout that separates the column base from the surrounding concrete slab on grade. The connection includes anchor bolts embedded in the footing and fillet welds securing the column to the base plate.
5/16 CONCRETE SLAB ON GRADE, SEE PLAN STEEL BASE PLATE (SEE SCHEDULE) ON 1.1/2" NON-SHRINK GROUT CONCRETE FOOTING, SEE PLAN AND SCHED STEEL COLUMN, SEE PLAN AND SCHEDULE CONCRETE BLOCKOUT
