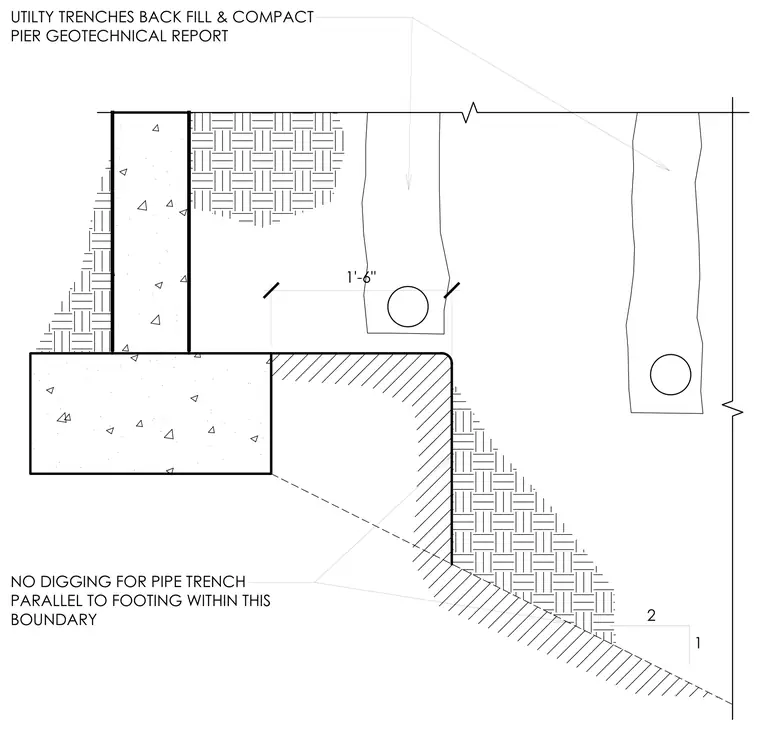

This detail outlines the geotechnical requirements for utility trenches located near foundation elements. It establishes a restriction zone prohibiting parallel pipe trench excavation within a specified boundary from the footing. Backfill and compaction must follow geotechnical report specifications. A slope ratio of two to one governs the excavation and soil profile below the footing bearing level.
NO DIGGING FOR PIPE TRENCH PARALLEL TO FOOTING WITHIN THIS BOUNDARY UTILTY TRENCHES BACK FILL & COMPACT PIER GEOTECHNICAL REPORT 2 1 1'-6" a A T / > y 1 I- <> “F k / / / / / / '—Ml: I // / / / / V 4 b 4 j A b /b • b 4 ib b £b b 4 ' 4- 4 •
