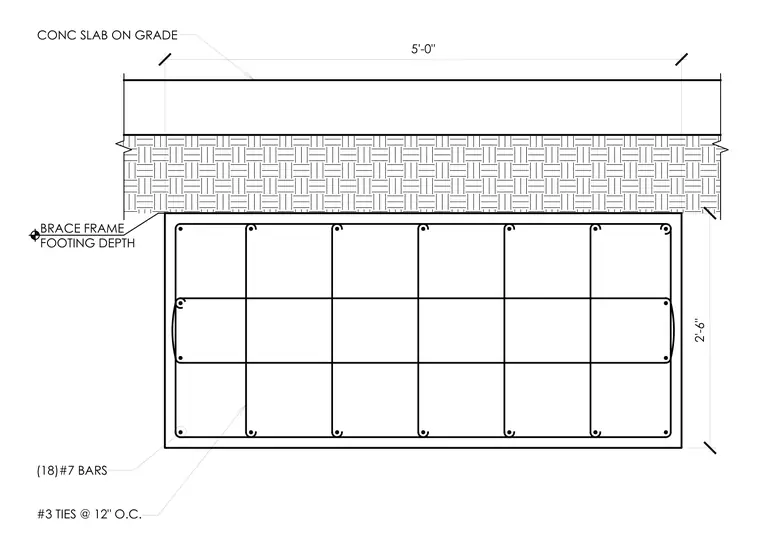

This structural detail shows a reinforced concrete grade beam supporting a concrete slab on grade at a brace frame footing depth. The grade beam measures 2 feet 6 inches in depth by 5 feet in width, reinforced with eighteen number 7 longitudinal reinforcing bars and number 3 transverse ties spaced at 12 inches on center.
2'-6" 5'-0" (18)#7 BARS #3 TIES @ 12" O.C. CONC SLAB ON GRADE BRACE FRAME FOOTING DEPTH
