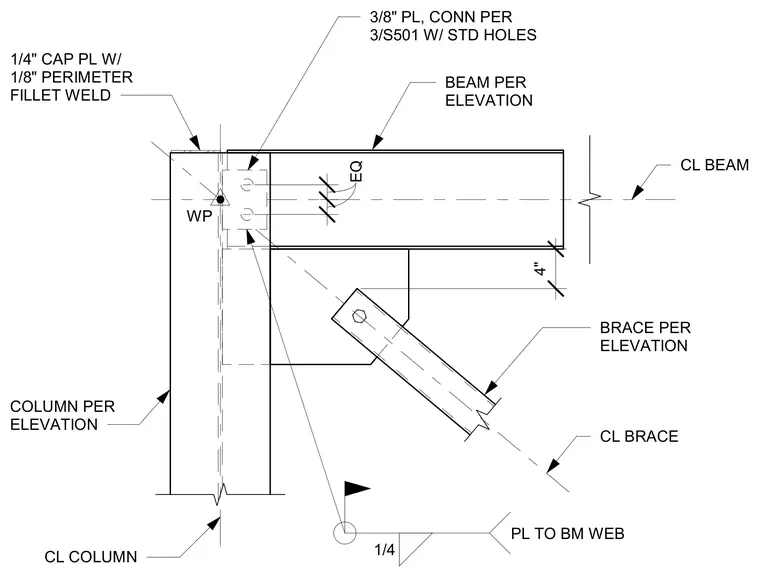

A top braced frame connection joins a beam and a diagonal brace to a wide-flange column. A one-quarter-inch cap plate is secured to the top of the column with a one-eighth-inch perimeter fillet weld. A three-eighths-inch connection plate with standard holes fastens to the beam web using a one-quarter-inch fillet weld. The column, beam, and brace sizes are sized per the framing elevation.
BEAM PER ELEVATION COLUMN PER ELEVATION CL BRACE BRACE PER ELEVATION 4" WP CL BEAM CL COLUMN 1/4" CAP PL W/ 1/8" PERIMETER FILLET WELD 3/8" PL, CONN PER 3/S501 W/ STD HOLES 1/4 PL TO BM WEB EQ EQ
