An elevator guide rail bracket connects to a hollow structural section post using a one-half inch thick by eight-inch wide knife plate extended to the centerline on each side of the hollow structural section. A one-half inch thick by eight-inch wide by two-foot six-inch long steel plate centers the elevator manufacturer guide rail bracket on the steel plate. Gypsum board behind the plate is placed prior to welding. One-quarter inch fillet welds are applied to three sides typically, using type B backing per detail six on sheet S7.01.

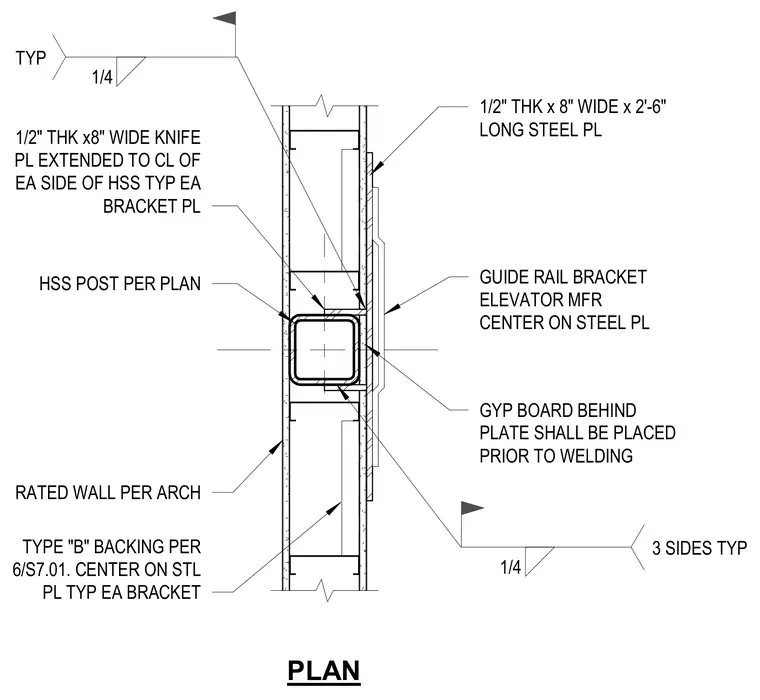

1/2" THK x8" WIDE KNIFE PL EXTENDED TO CL OF EA SIDE OF HSS TYP EA BRACKET PL RATED WALL PER ARCH HSS POST PER PLAN 1/2" THK x 8" WIDE x 2'-6" LONG STEEL PL GUIDE RAIL BRACKET ELEVATOR MFR CENTER ON STEEL PL 1/4 3 SIDES TYP 1/4 TYP TYPE "B" BACKING PER 6/S7.01. CENTER ON STL PL TYP EA BRACKET GYP BOARD BEHIND PLATE SHALL BE PLACED PRIOR TO WELDING PLAN
