Stagger Details (Use As Required)

Materials

Elements

About this detail

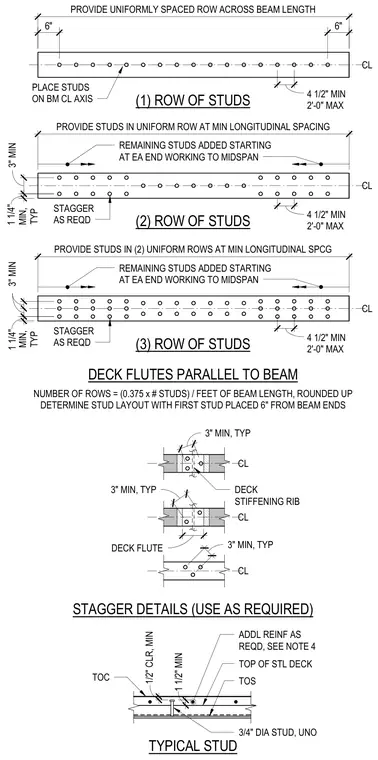

One, two, or three rows of three-quarter-inch diameter studs are placed along the beam centerline axis. Stud layouts begin six inches from the beam ends with uniformly spaced rows up to a maximum spacing of two feet. Additional reinforcement is provided as required with specific clearances above the top of the steel deck. Staggered configurations are applied when multiple rows are specified with minimum transverse clearances between studs and deck stiffening ribs.
