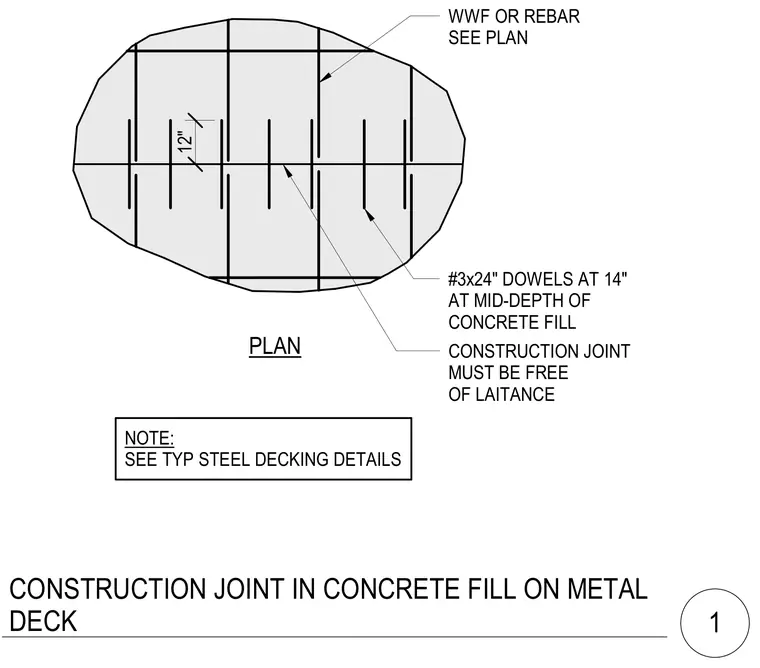

A construction joint in concrete fill over a metal deck is reinforced with welded wire fabric or rebar sized per plan. Number 3 by twenty-four inch dowels are spaced at fourteen inches on center at the mid-depth of the concrete fill. The construction joint surface must be kept completely free of laitance. Typical steel decking details should be referenced for complete deck installation requirements.
PLAN WWF OR REBAR SEE PLAN #3x24" DOWELS AT 14" AT MID-DEPTH OF CONCRETE FILL CONSTRUCTION JOINT MUST BE FREE OF LAITANCE NOTE: SEE TYP STEEL DECKING DETAILS 12" CONSTRUCTION JOINT IN CONCRETE FILL ON METAL DECK 1
