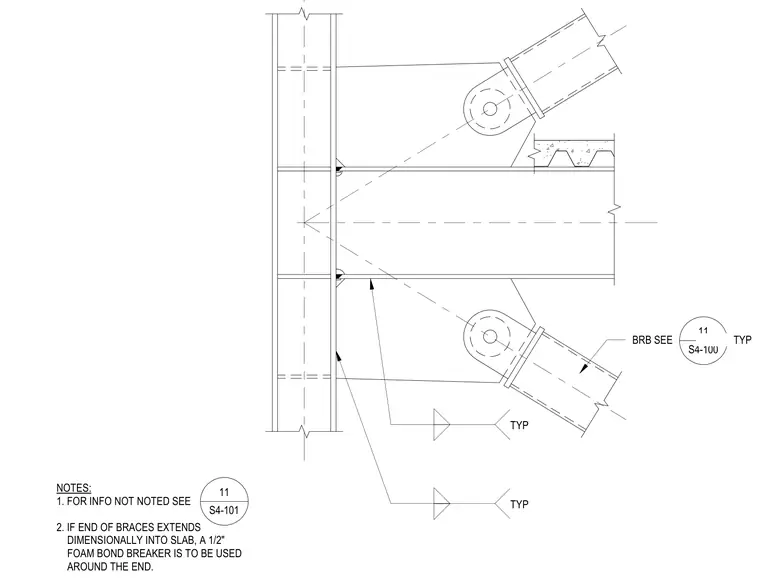

A buckling restrained brace connects to a wide flange steel column flange at a floor level using gusset plates and pin connections. A horizontal framing member with metal deck and concrete slab intersects the column. When the ends of the braces extend dimensionally into the slab, a one-half-inch foam bond breaker is used around the end. General information and additional detailing references are noted on the drawing.
11 S4-101 11 S4-100 TYP TYP NOTES: 1. FOR INFO NOT NOTED SEE 2. IF END OF BRACES EXTENDS DIMENSIONALLY INTO SLAB, A 1/2" FOAM BOND BREAKER IS TO BE USED AROUND THE END. BRB SEE TYP
