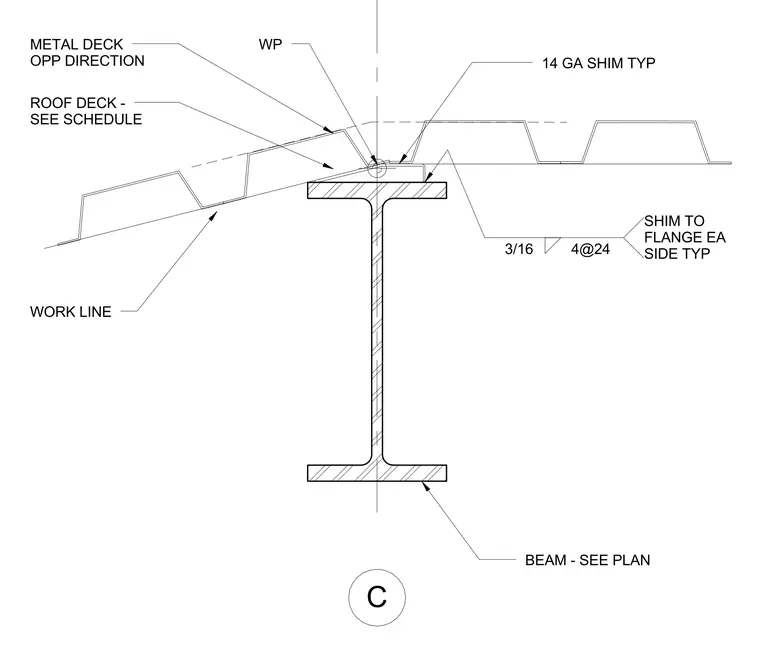

Roof decks running in opposite directions meet over a structural steel beam sized per plan at a work line intersection. A fourteen gauge shim is provided typically with a three-sixteenths inch fillet weld spaced at four inches on center, twenty-four inches max, to the flange each side typically. The metal deck running in the opposite direction rests above the transition alongside the scheduled roof deck.
14 GA SHIM TYP WP METAL DECK OPP DIRECTION ROOF DECK - SEE SCHEDULE WORK LINE BEAM - SEE PLAN 3/16 4@24 SHIM TO FLANGE EA SIDE TYP C
