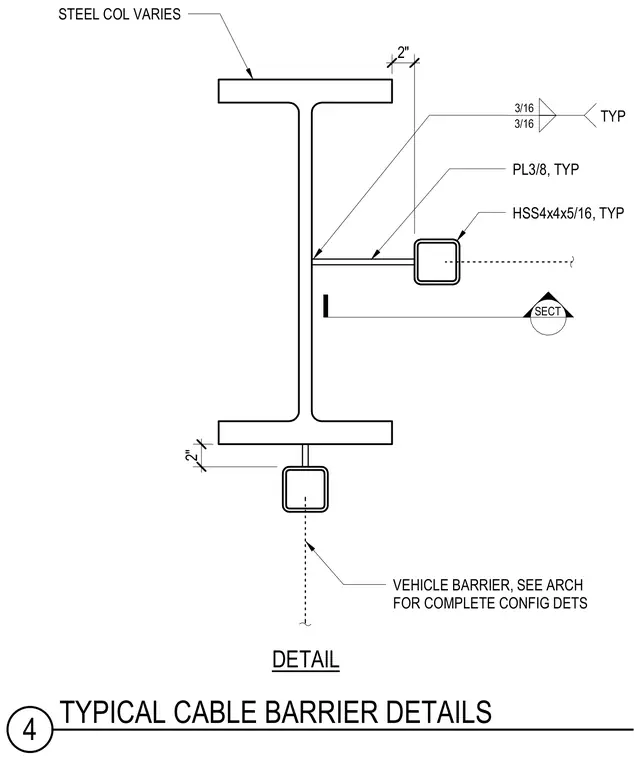

A hollow structural section measuring four inches by four inches by five-sixteenths is connected to a variable steel column using a three-eighths-inch plate welded with typical three-sixteenths-inch fillet welds. A clearance of two inches is maintained between the structural steel column and the barrier assembly. Additional vehicle barrier configuration details are coordinated with the architectural drawings.
SECT DETAIL 2" TYP 3/16 3/16 PL3/8, TYP HSS4x4x5/16, TYP STEEL COL VARIES 2" VEHICLE BARRIER, SEE ARCH FOR COMPLETE CONFIG DETS 4 TYPICAL CABLE BARRIER DETAILS
