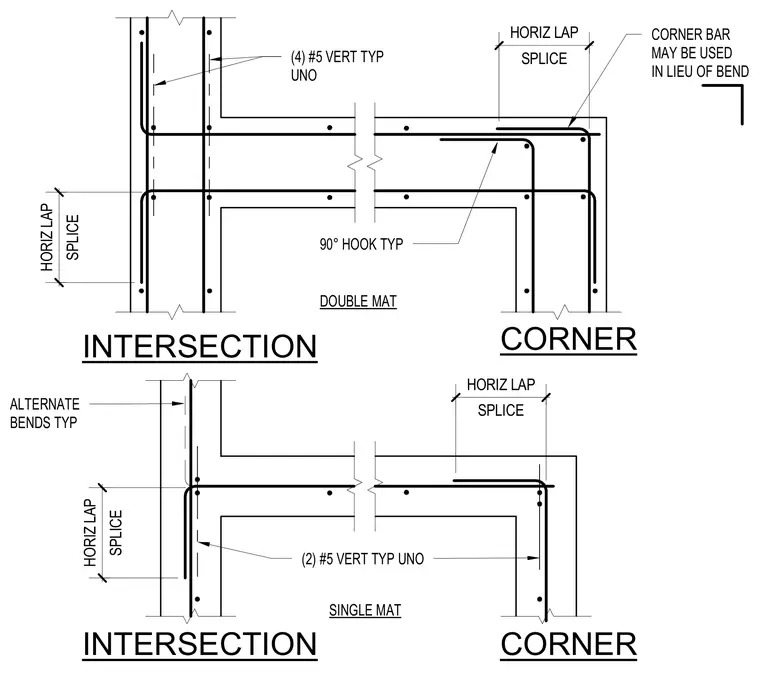

Concrete wall corners and intersections utilize number five vertical reinforcing bars with ninety-degree hooks or alternate bends typical unless noted otherwise. Horizontal lap splices are provided at wall intersections and corners. Separate details illustrate single mat and double mat concrete reinforcing configurations. Special corner bars may be used in lieu of bent bars at corners.
CORNER INTERSECTION INTERSECTION CORNER SINGLE MAT DOUBLE MAT (4) #5 VERT TYP UNO CORNER BAR MAY BE USED IN LIEU OF BEND 90° HOOK TYP (2) #5 VERT TYP UNO ALTERNATE BENDS TYP SPLICE HORIZ LAP SPLICE HORIZ LAP SPLICE HORIZ LAP SPLICE HORIZ LAP
