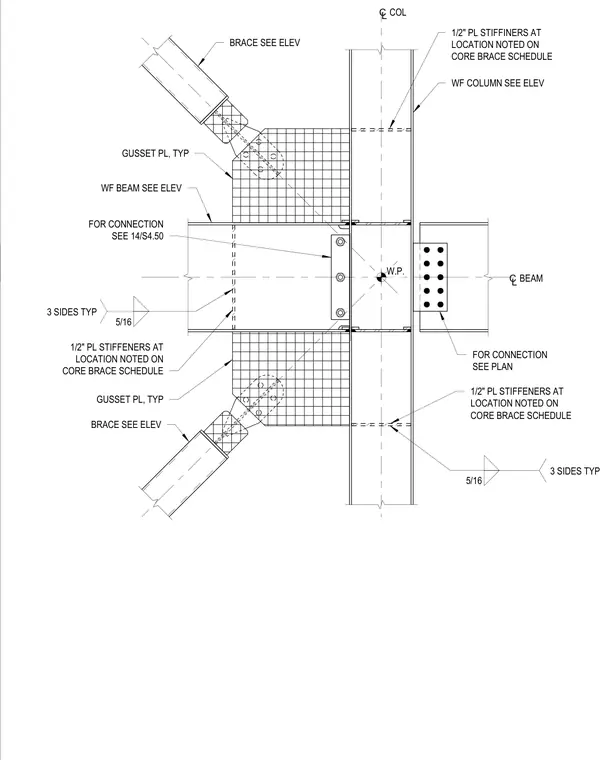

This structural steel connection joins diagonal braces to a wide-flange column and wide-flange beam intersection along the strong axis. Gusset plates tie the braces into the column and beam framing, reinforced with half-inch plate stiffeners located per the core brace schedule. Five-sixteenth-inch fillet welds are applied on three sides typically at the brace connections. Additional beam connections are referenced to plan and sheet S4.50.
BRACE SEE ELEV 5/16 3 SIDES TYP BRACE SEE ELEV GUSSET PL, TYP 1/2" PL STIFFENERS AT LOCATION NOTED ON CORE BRACE SCHEDULE FOR CONNECTION SEE PLAN W.P. 1/2" PL STIFFINERS AT LOCATION NOTED ON CORE BRACE SCHEDULE WF COLUMN SEE ELEV CL COL WF BEAM SEE ELEV FOR CONNECTION SEE 14/S4.50 CL BEAM GUSSET PL, TYP 5/16 3 SIDES TYP 1/2" PL STIFFENERS AT LOCATION NOTED ON CORE BRACE SCHEDULE
