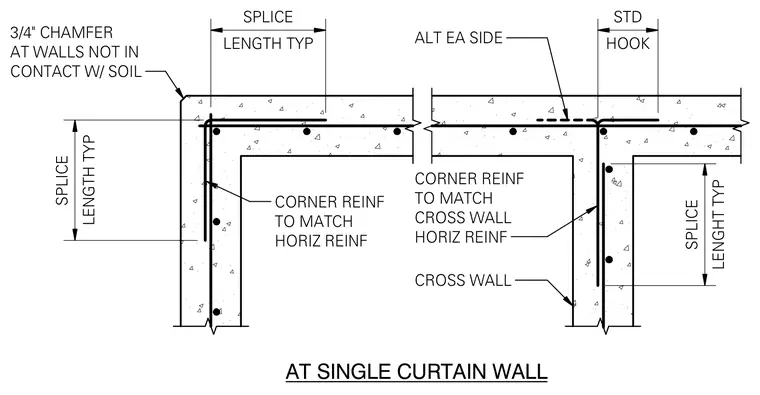

Concrete wall corners and intersecting cross walls are reinforced with horizontal reinforcing bars tied with standard hooks and typical splice lengths. Corner reinforcing matches the size of horizontal reinforcing bars. A three-quarter-inch chamfer is applied to wall edges not in contact with soil. Reinforcement splices alternate on each side of the wall.
AT SINGLE CURTAIN WALL CORNER REINF TO MATCH HORIZ REINF CROSS WALL CORNER REINF TO MATCH CROSS WALL HORIZ REINF 3/4" CHAMFER AT WALLS NOT IN CONTACT W/ SOIL ALT EA SIDE LENGTH TYP SPLICE LENGHT TYP SPLICE HOOK STD LENGTH TYP SPLICE
