An angle measuring 3 by 3 by 3/8 inches and 0'-6" long connects the structural framing to the wall panel assembly. Two 3/4-inch diameter A325-SC-OVS bolts spaced at 3 inches on center secure the angle to the C-jamb. A 3/16-inch fillet weld on three sides attaches the angle to the wide flange girt sized per elevation. The wall panel is coordinated per architectural drawings A-351 through A-353.

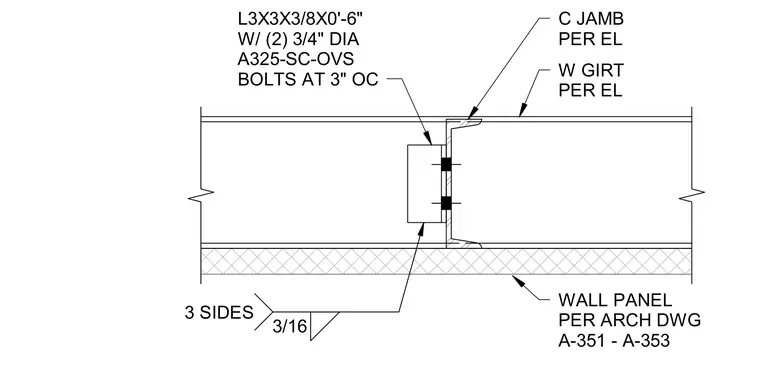

L3X3X3/8X0'-6" W/ (2) 3/4" DIA A325-SC-OVS BOLTS AT 3" OC 3/16 3 SIDES W GIRT PER EL C JAMB PER EL WALL PANEL PER ARCH DWG A-351 - A-353
