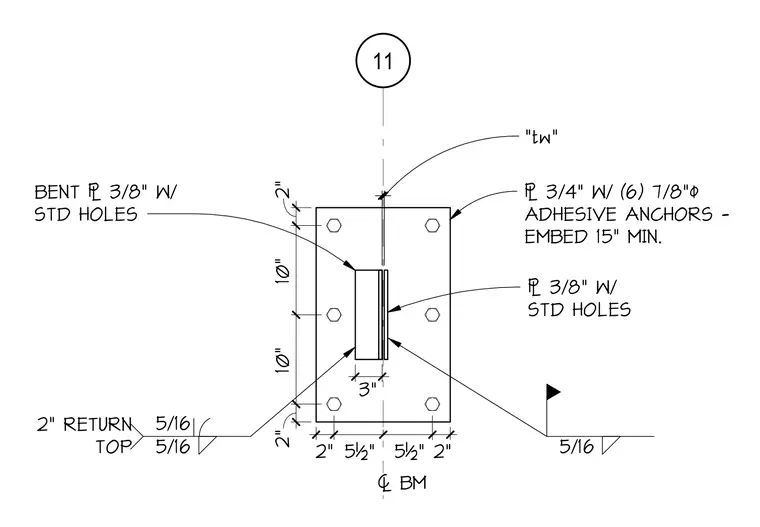

A three-quarter-inch plate is anchored with six seven-eighths-inch adhesive anchors embedded fifteen inches minimum. A three-eighths-inch bent plate with standard holes is connected with five-sixteenths-inch welds. A two-inch return is welded at the top with five-sixteenths-inch welds.
11 2" 5½" 5½" 2" 2" 10" 10" 2" 1/4" "tw" 3" BM 3/4" W/ (6) 7/8"/ ADHESIVE ANCHORS - EMBED 15" MIN. 3/8" W/ STD HOLES 5/16 5/16 2" RETURN TOP BENT 3/8" W/ STD HOLES 5/16
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
